M7 OPTIONS
No Printer? No problem, we
can supply the M7 with an
Imaje 9232 Ink Jet Printer,
INK JET PRINTER
Moves "Print Head" across the  bottom of magazine -
Capable of interfacing with most ink jet manufacturers
INK JET DRIVE
Thermal Embossing in the seal area - Available in
3,4,5 and 6mm sizes with up to 20 digits
TOP SEAL EMBOSS
SIDE SEAL EMBOSS
Thermal Embossing in the side seal area - Available
in 3 and 4mm sizes with up to 10 digits
Used to take oxygen levels in the pouch down to
0.5% - 10% based on product & setup
GAS FLUSH
Removes excess air from pouch. Soft Vacuum -
Note will not remove ALL air from pouch.
VACUUM
Supports heavy bag filling of products weighing
more than 2kg  also provides settling if required.
HEAVY BAG ASSIST / PRODUCT SETTLER
2  Types are available
Low - Allows Low pressure wash no chemicals.
High - Allows High pressure wash with chemicals.
WASH-DOWN - IP65
Allows the M7 to package Side
Gusset and Quad Seal pouches.
SIDE GUSSET
Equip your M7 series with these options to package your product your way.
STANDARD OPTIONS
CUSTOMIZED OPTIONS
Offers superior sealing on materials used for liquids
and retort. Available with different styles, twin band
contour etc.
IMPULSE SEAL BAR & BANDS
CUSTOM SEAL BAR FACES AND CONTOURS
Choose Between:
FLAT - Ideal for Free Flowing Product
RIBBED - Ideal for Dusty or small particulates caught in seal area
CONTOUR - For special tear opening or liquids.
TEFLON COATED - Ideal for sticky and quick cleans
CERAMIC COATED - Ideal for high Heats

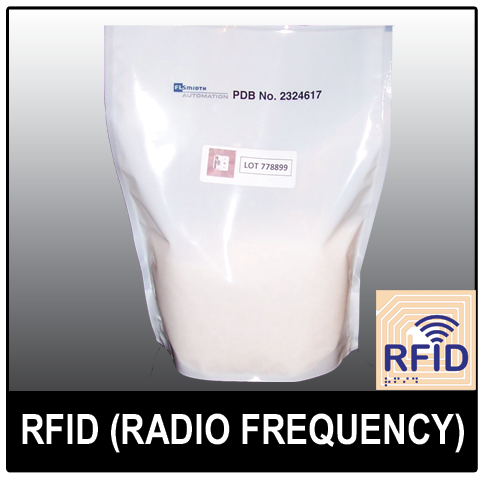

RADIO FREQUENCY IDENTIFICATION
Run RFID Pouches on the M7 and encode them with a RFID Writer. .
HIGH DUST & DUST EXTRACTION
Allows for the packaging of highly dusty products - Portland cement -
Baby powder - Icing Sugar etc.
Opens Zippers that come closed from the manufacturer.This option
requires a bag test before ordering - as not all zipper types can be
opened.
ZIPPER OPENER
CUSTOM SEAL BAR FACES AND CONTOURS
This option punches small holes into the pouch, to allow trapped air in the pouch to escape when placed on a pallet.
CUSTOM HEIGHTS
The M7 pouch machine can be sized to suit your room height
or to interface with existing equipment.

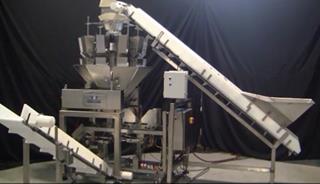

FULL OR PARTIAL SYSTEMS
With years of system integration expertise around the globe,
We can supply anywhere from one of our M7 pouch machines
to a full turn key integrated system.
OTHER CUSTOMIZED OPTIONS & DESIGNS AVAILABLE
